Optical Monitor

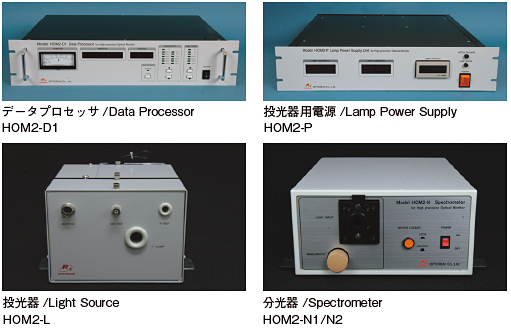

HOM2 Series

High Precision Optical Monitor

HOM2 series is an optical film thickness monitor for a vacuum coating system to produce AR coatings and various optical filters.

■

± 0.001% low dark noise achieved based on stable fiber optical system and low noise circuit design.

■

Transmittance and reflectance monitoring selectable.

■

± 0.05 light sensitivity based on the self-developed technology.

Specifications

Range	R-type Visible	T-type Visible	R-type NIR	T-type NIR
Model	HOM2-R-VIS350	HOM2-T-VIS350	HOM2-R-IR900	HOM2-T-IR900
Wavelength Range	350nm ～ 1100nm		900nm ～ 2400nm
Light Source	Halogen lamp		Halogen lamp
Power Requirements	AC100V±10%, 50/60Hz

　
