- NSC-15
- 连续式光学薄膜形成装置
- 反应性等离子源镀膜机
- SDAR 系列
- 器件
- 离子源
- 光学膜厚监控仪
NSC-15
NSC-15

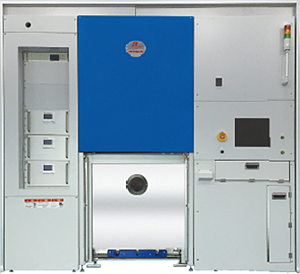

NSC-15, an optical thin film sputtering coater for mass-product, employs metal-mode-sputtering technique combined with a highly reactive plasma source. Load-lock system is equipped to achieve high throughput production.

■
4 kinds of target materials at maximum
■
Replacement of cathode with other component
■
Dual rotary cylindrical cathod for stable discharge
■
High reactive plasma source for low absorption film
■
Load-lock type substrate holder transfer system
Specifications
Vacuum Chamber | LL Room: SUS304, W500 mm×D800 mm×H2890 mm PR Room: SUS304, φ1650 mm×H1200 mm |
Substrate Holder | Selectable 13 - 22 pcs a holder |
Rotary substrate drum system | φ1500 mm, Drum Type, 10 rpm - 100 rpm (Variable) |
Reaction source | ICP (Inductively coupled plasma) |
Sputtering source | Dual rotary cathode (Planner type as option) |
Evacuation system | Roughing pump, Turbo molecular pump |
Performance
Ultimate Pressure | LL chamber: 10 Pa PR chamber: ≤5.0 × 10-4 Pa |
Pump Down Rate | LL chamber: ≤20 min (from atmospheric to 1.0×10-1 Pa) PR chamber: ≤40 min (from atmospheric to 5.0×10-3 Pa) |
Setting substrate heating temperature |
150℃ as option |
Utility Requirements
Layout Dimensions | 5800 mm (W) × 7700 mm (D)×3200 mm (H) |
Power Requirements | 3-phase, 380V ± 10%、130kVA、50/60Hz |
Cooling Water Flow Rate | 180ℓ/min or greater |
Compressed Air Pressure | 0.5 MPa - 0.7 MPa |
Gross Weight | 13000 kg approx. |
