Ion Source

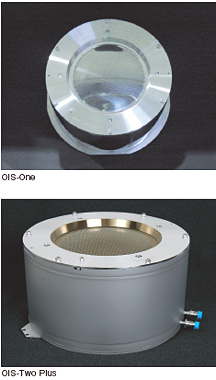

OIS-One/OIS-Two/OIS-Two Plus
17cm RF Ion Source
Optorun OIS-one/OIS-Two/OIS-Two plus RF ion source are developed for high-rate ion-assisted deposition and substrate ion cleaning, which are installed in Optorun OTFC-1100,
OTFC-1300 and OTFC-1550 coaters for mass production of various optical filters
■
Filamentless design. Low contamination and long life.
■
High and uniform current beams with broad beam angle.
■
Stable, long-hour operation.
Specifications
| Model | OIS-One | OIS-Two | OIS-Two Plus |
| Dimensions | φ300mm × 150mm (H) | ||
| Grids | φ 17cm three molybdenum grids | ||
| Beam Voltage | 100V - 1500V | ||
| Max Beam Current | 1000mA | 1200mA | |
| Acc Voltage | 100V - 1000V | ||
| Max RF Power | 600W | 750W | 1000W |
| Gas Flow Rate | 20sccm - 30sccm (argon) 40sccm - 60sccm (oxygen) |
||
| Pressure | 5 × 10-2 Pa | ||
| Water-cooling | RF coil and beam unit | ||
Neutralizer
| Dimensions | φ 6cm × 8cm | φ 7cm × 12cm | |
| Max Emission Current | 1500mA | 2000mA | 2400mA |
| Max RF Power | 150W | ||
| Gas Flow Rate | 5sccm to 10sccm (argon only) | ||
